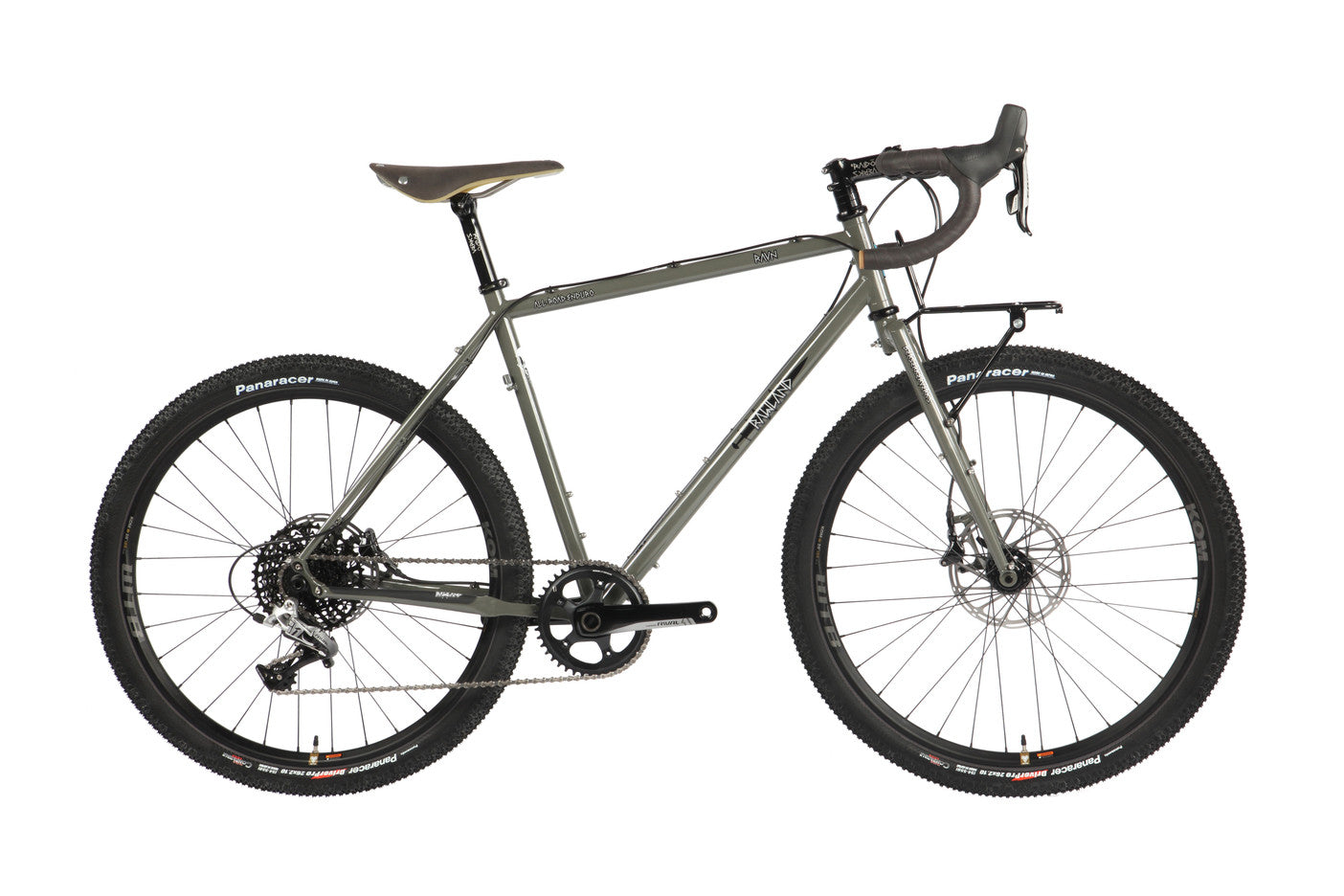

Ravn Frameset

Size

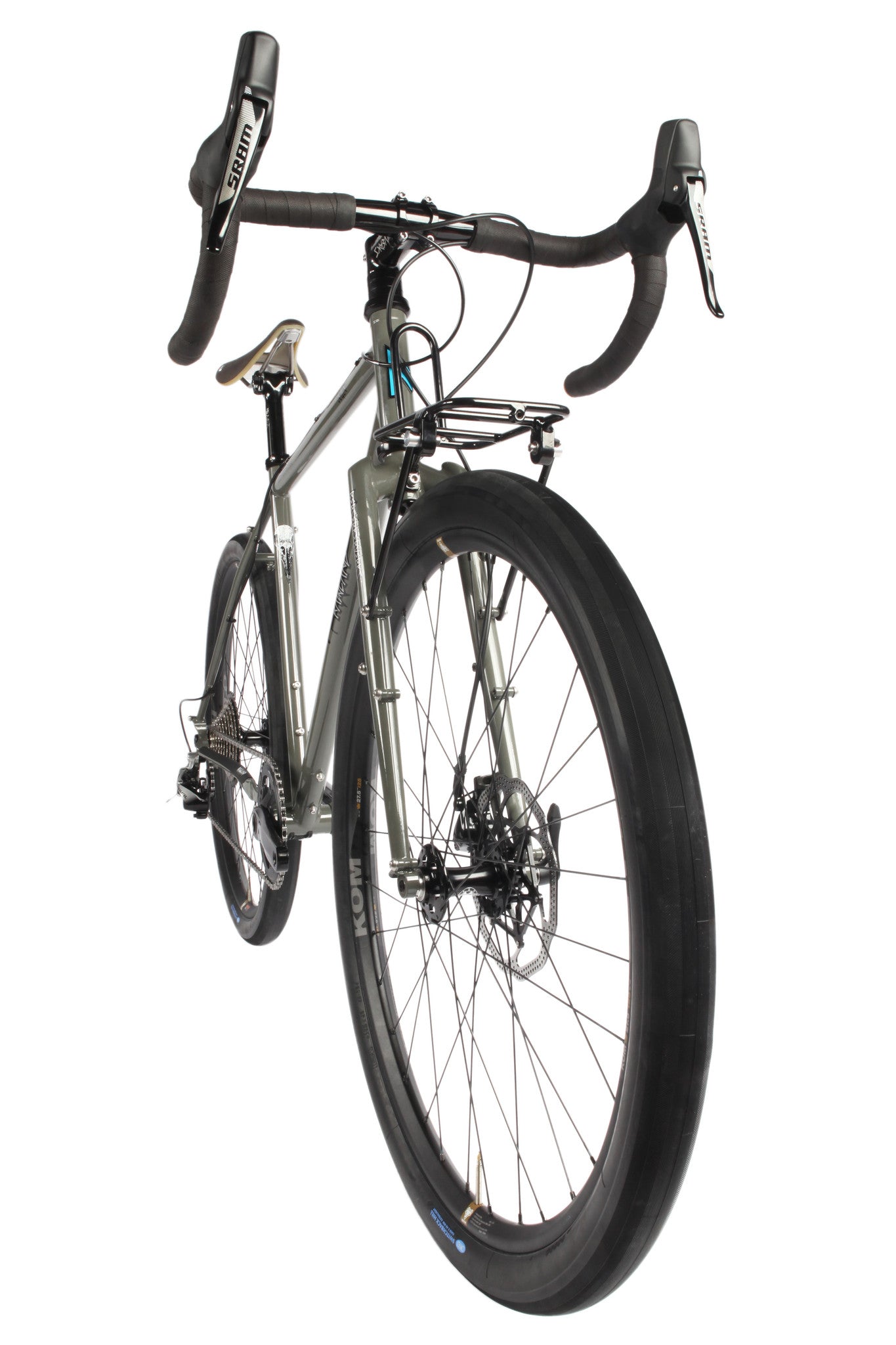

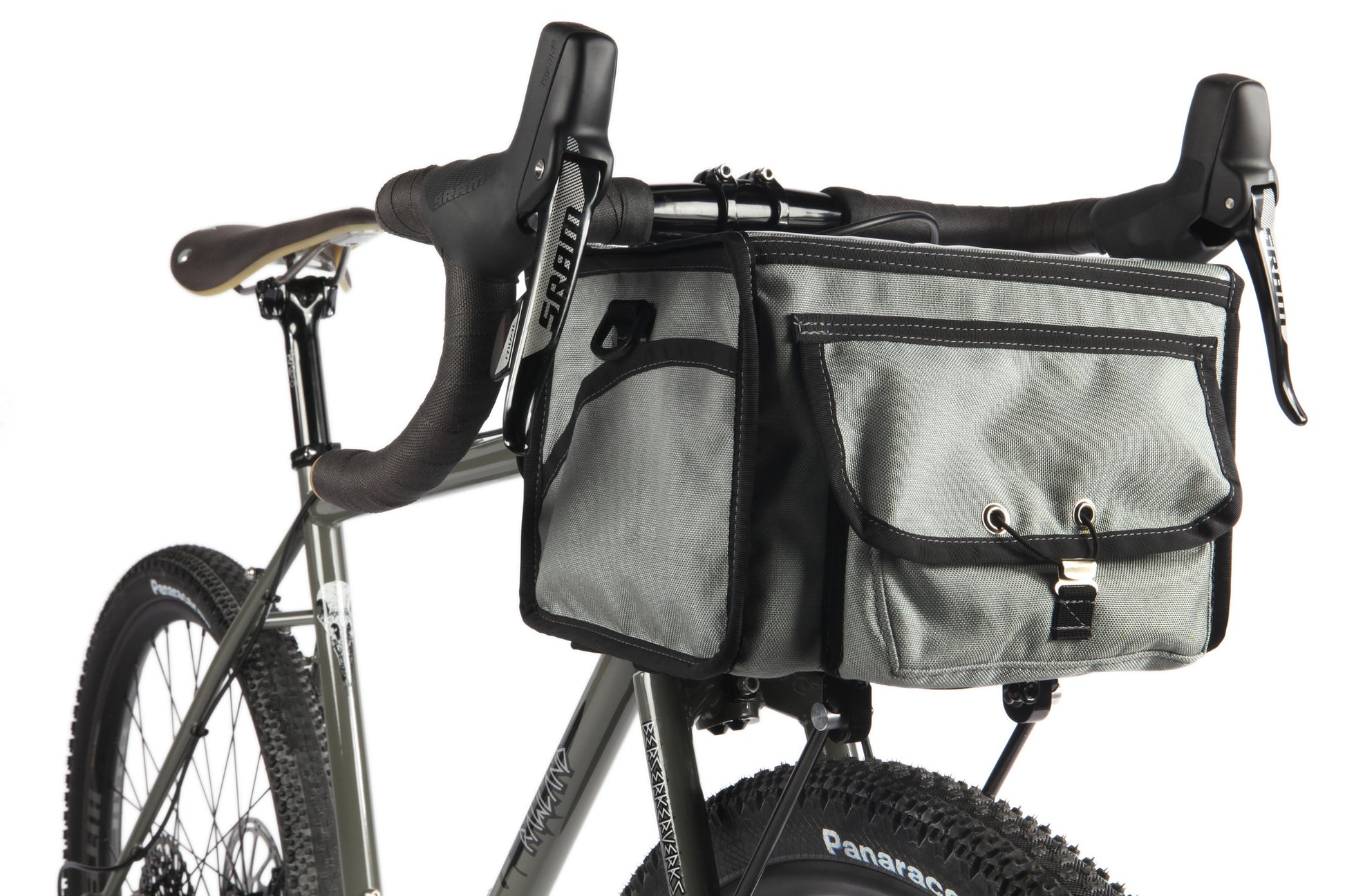

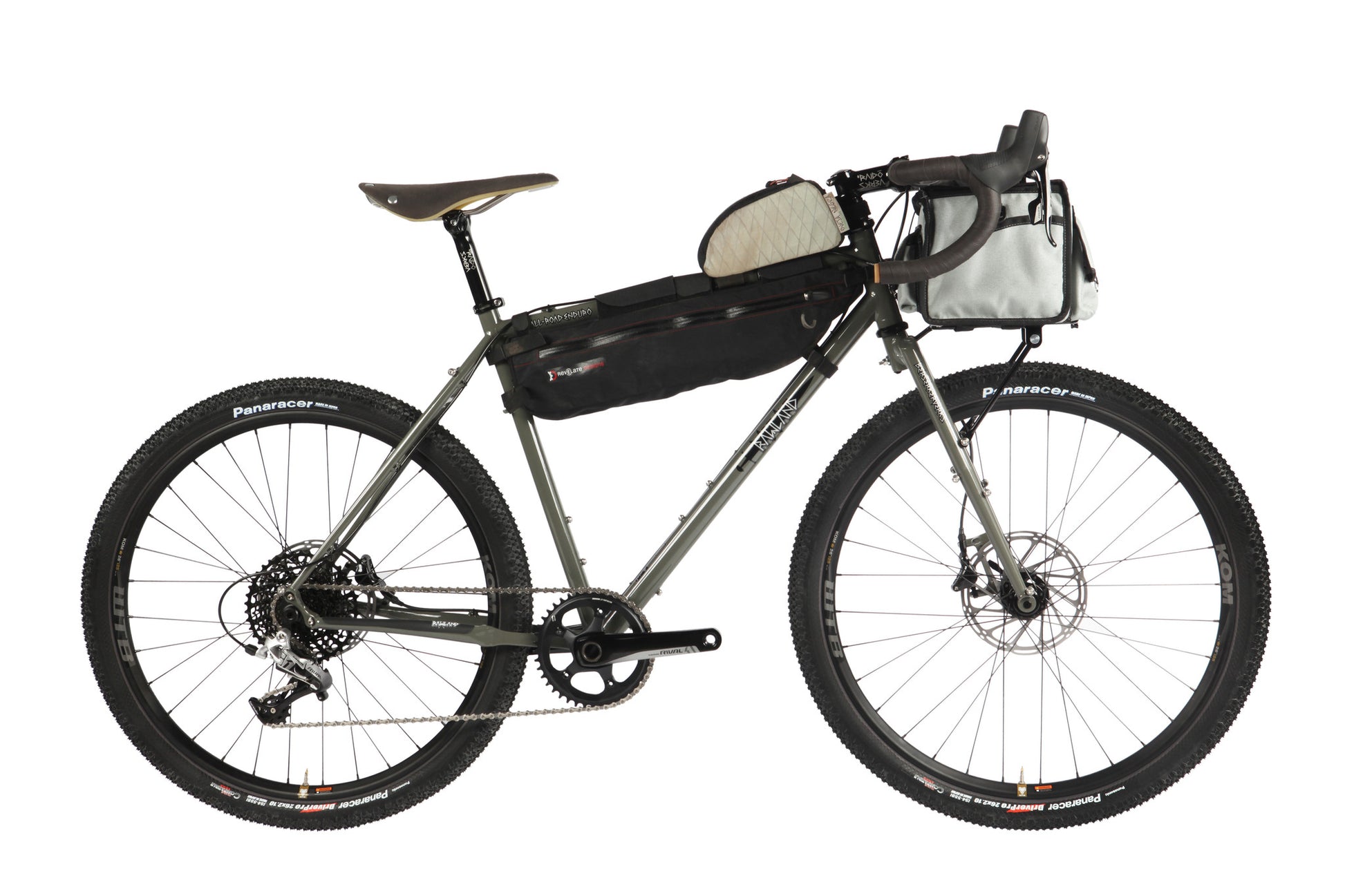

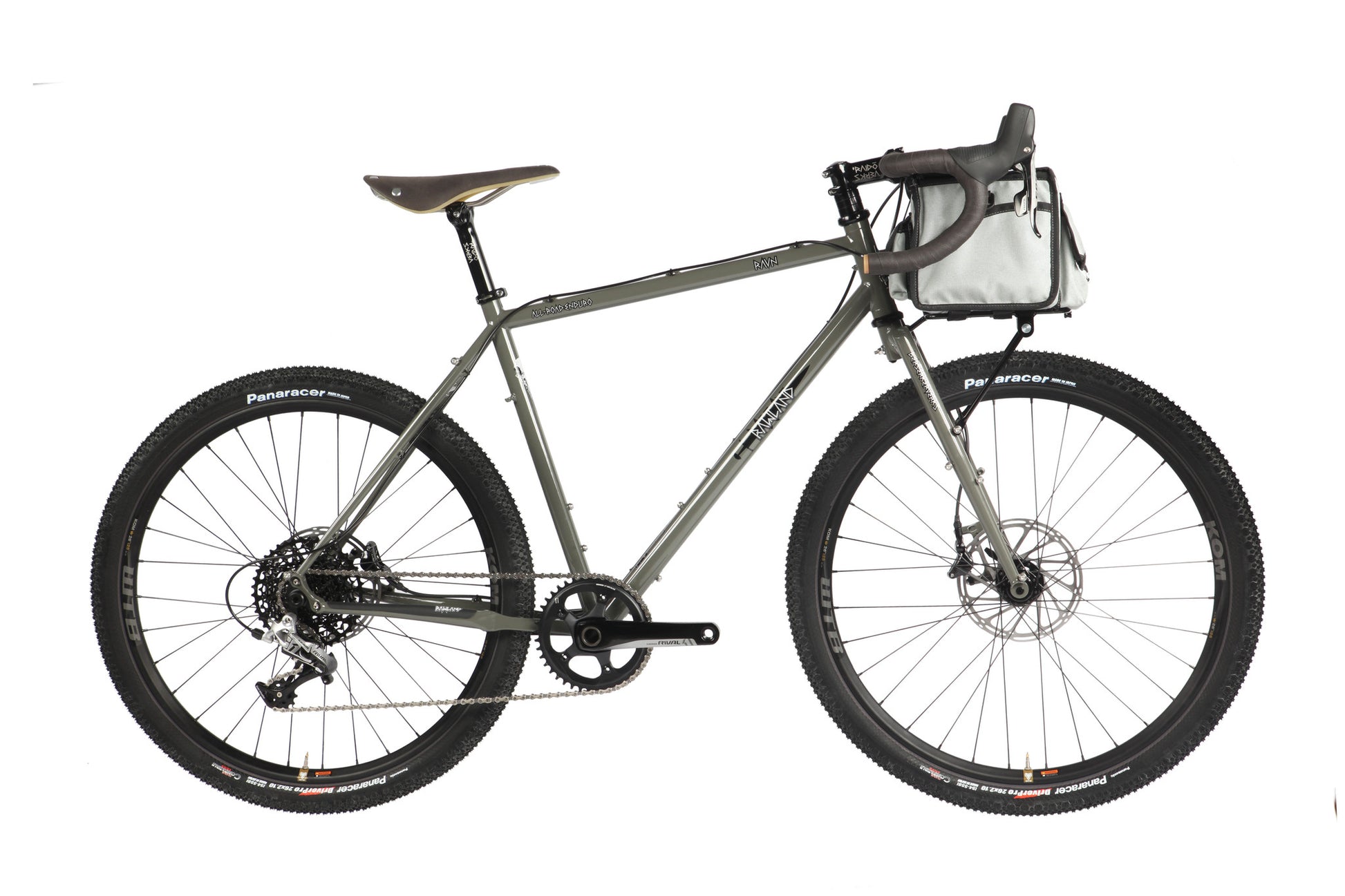

  • Why grind when you can fly? Run 26" x 57mm or 650b x 42mm with fenders and a 20mm fender gap—or up to 650b x 47mm without. With low-trail geometry and a super-premium Rawland STAAL tubeset, the Ravn (RAH-vin) is what we call an All-Road Enduro or Dirt Rando bike. Some say Road Plus. The focus is on speed, performance, and exceptional comfort over long distances on mixed terrain. Not only is the Ravn a killer rando, gravel, adventure, touring, and light bikepacking rig; it also features the geometry, clearances, and braze-ons to be built up as a perfect porteur or super-commuter. It’s truly a one-bike quiver, designed for maximum float over rough stuff like fire roads and singletrack, without compromising performance on pavement.

    • Triple-butted, heat-treated Rawland STAAL 4130 chromoly drawn from custom mandrels to ensure proper butting and gauge profiles
    • 559 ISO / 26-inch and 584 ISO / 650b
      • 26" x 58mm and 650b x 42mm with fenders
      • 650b x 47mm without fenders
      • Clearance for 70mm wide fenders

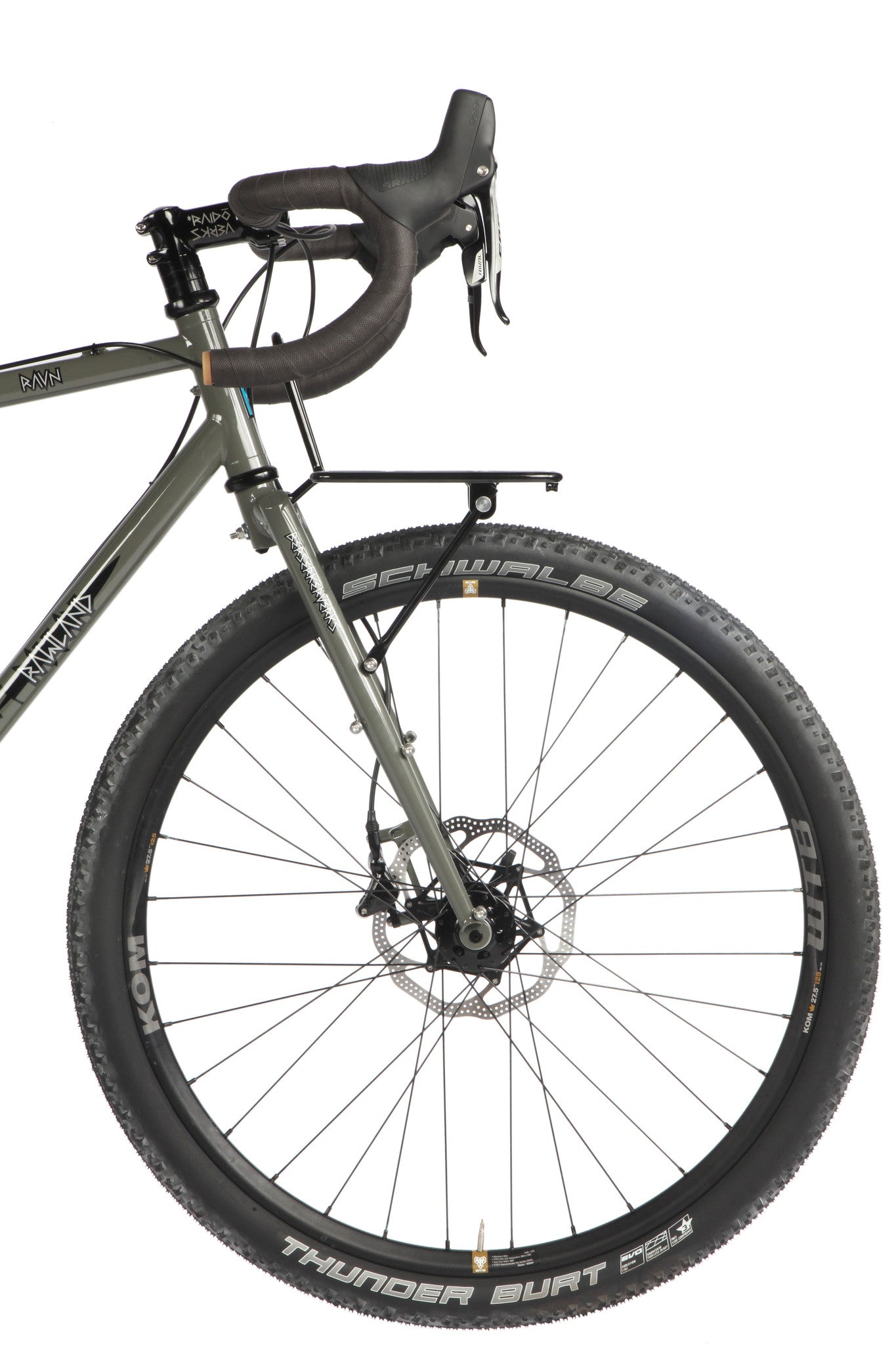

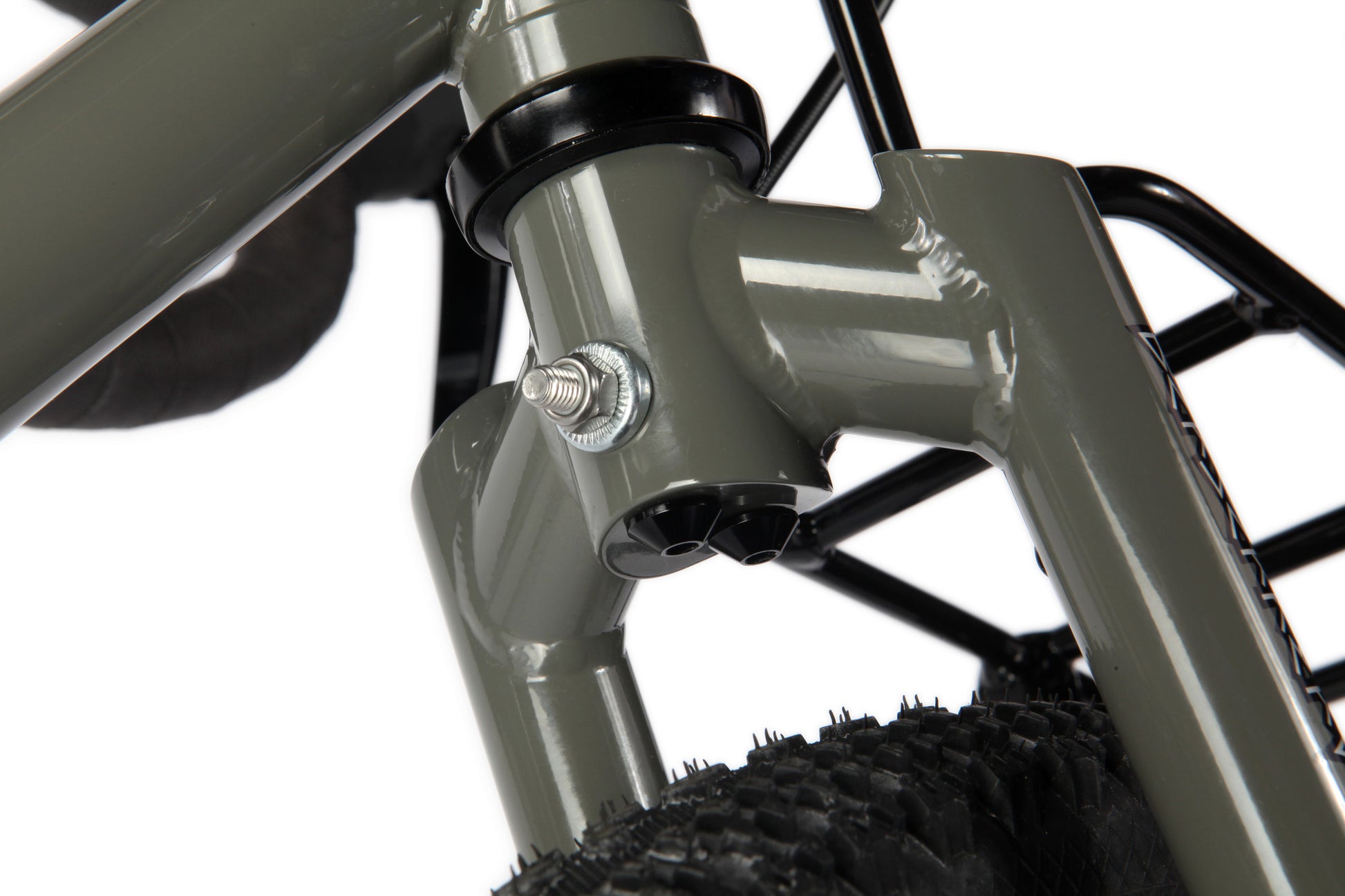

    • Rawland segmented fork
      • 30mm trail for intuitive handling, optimized for front loads

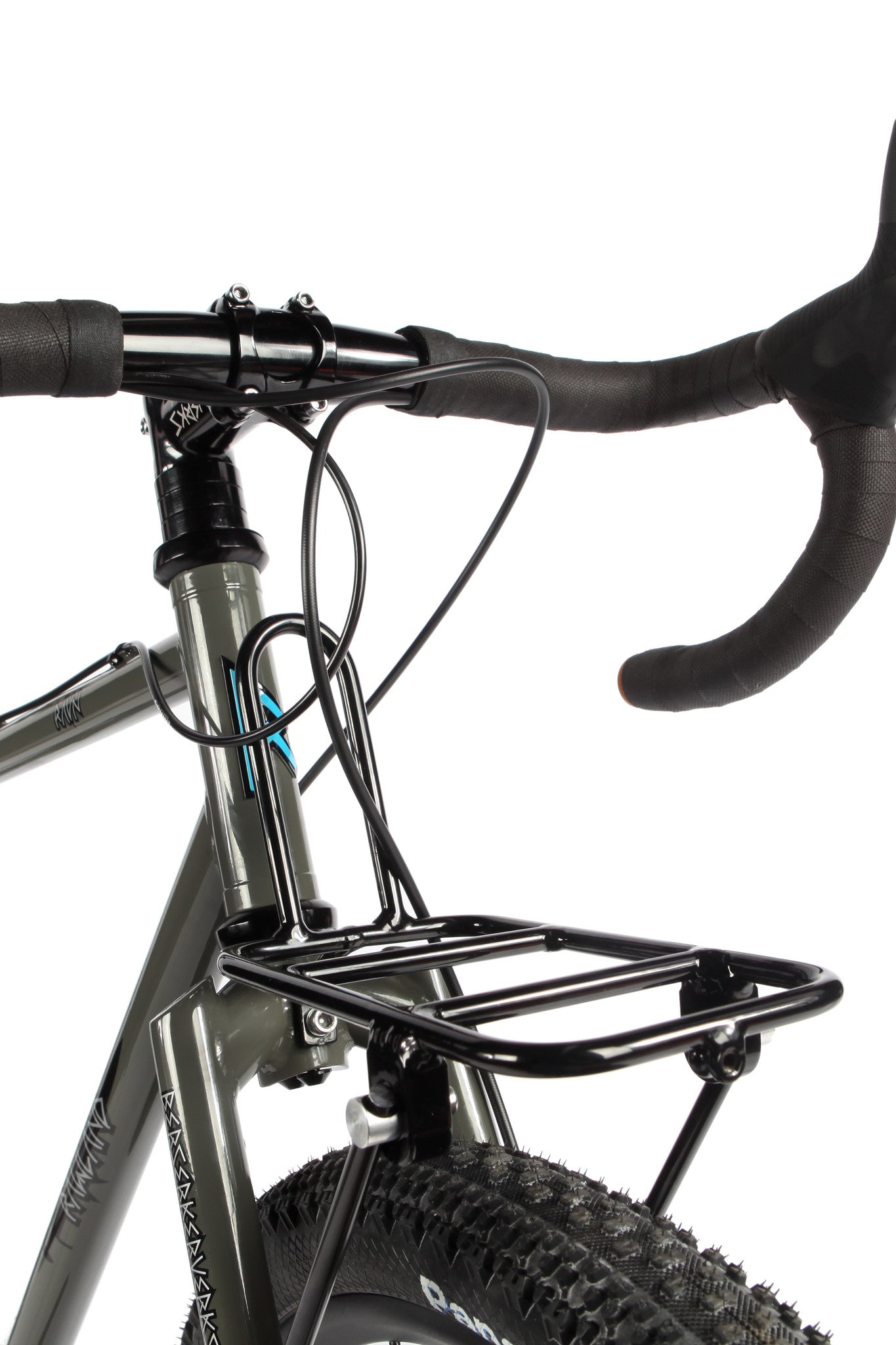

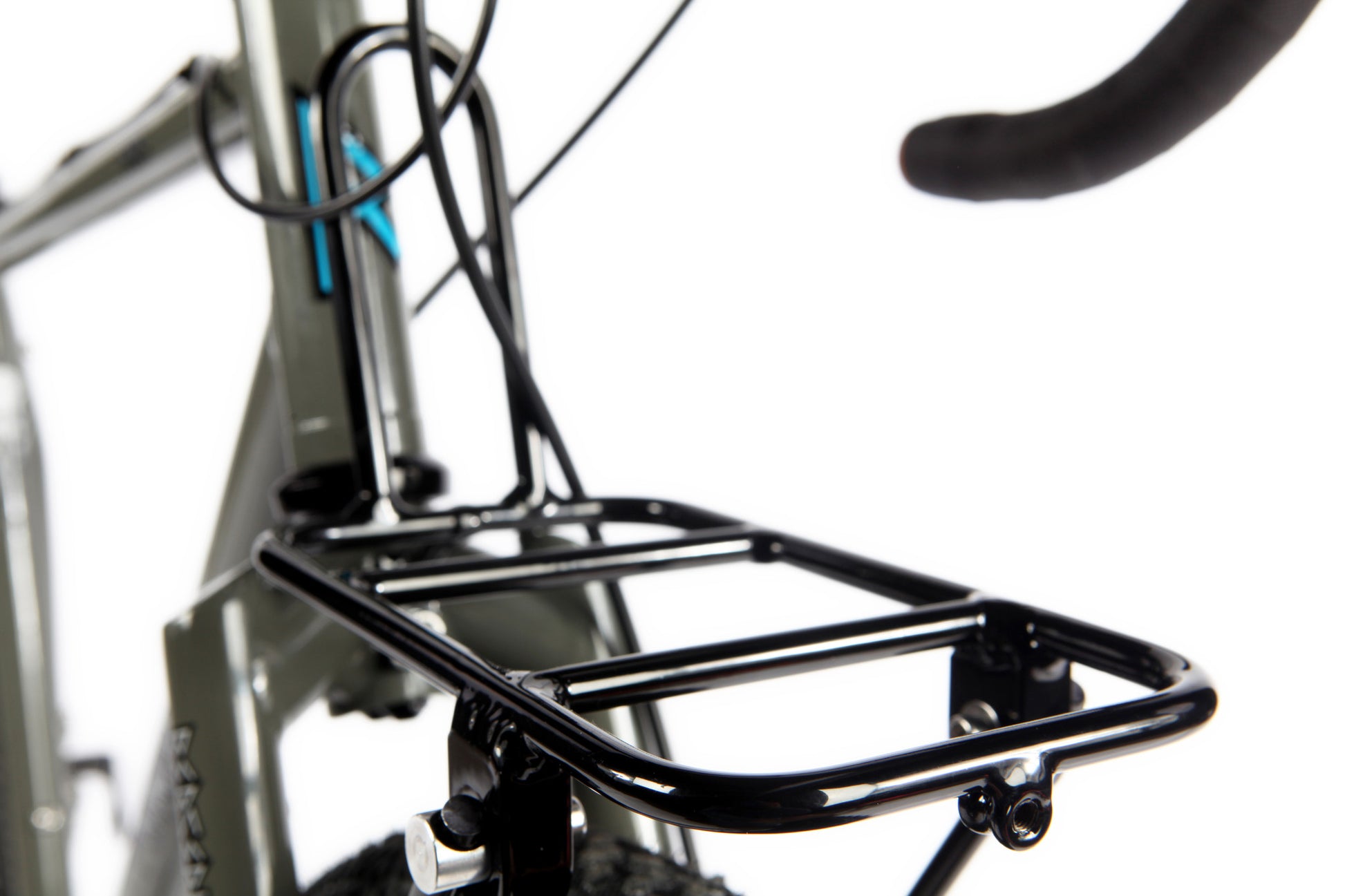

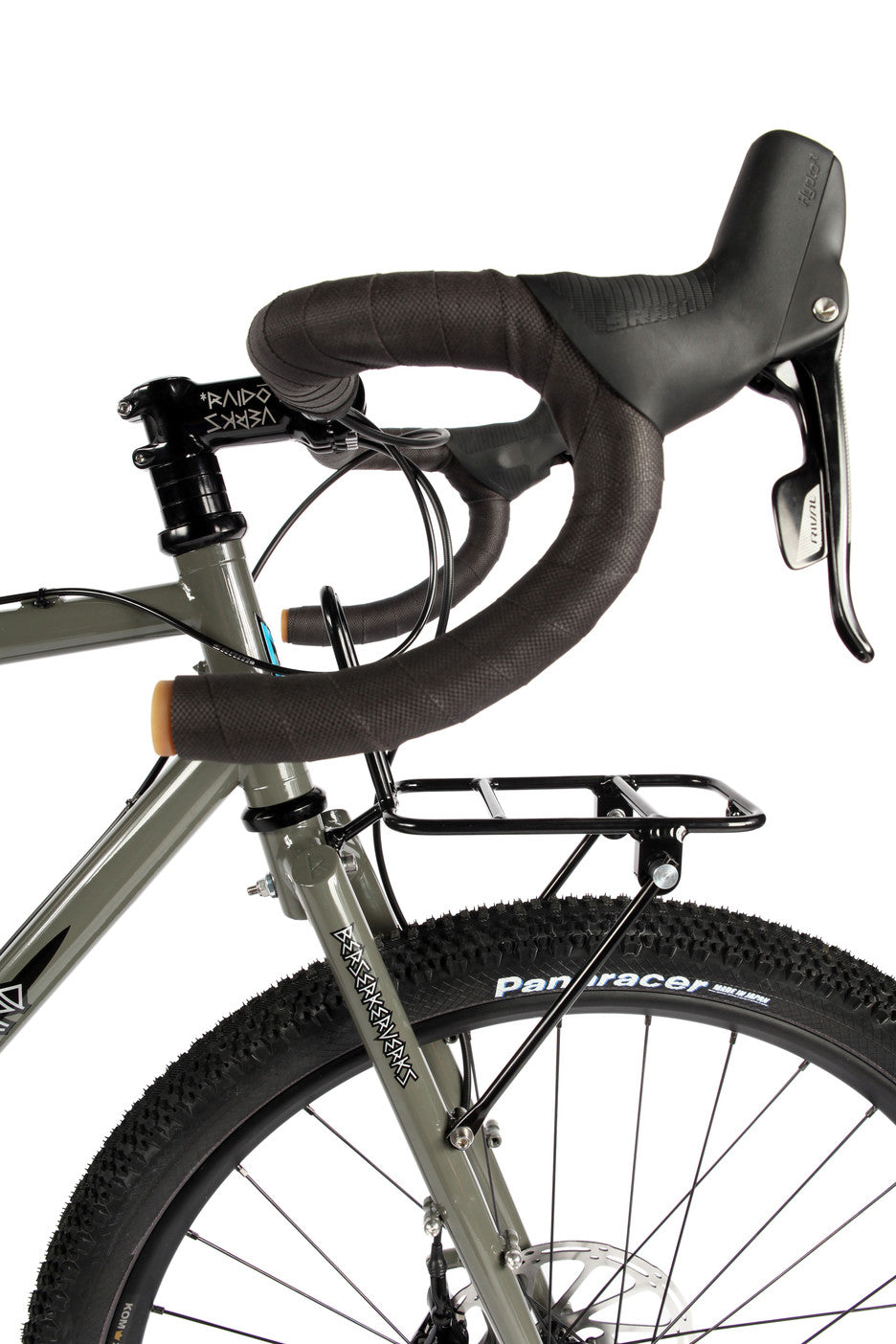

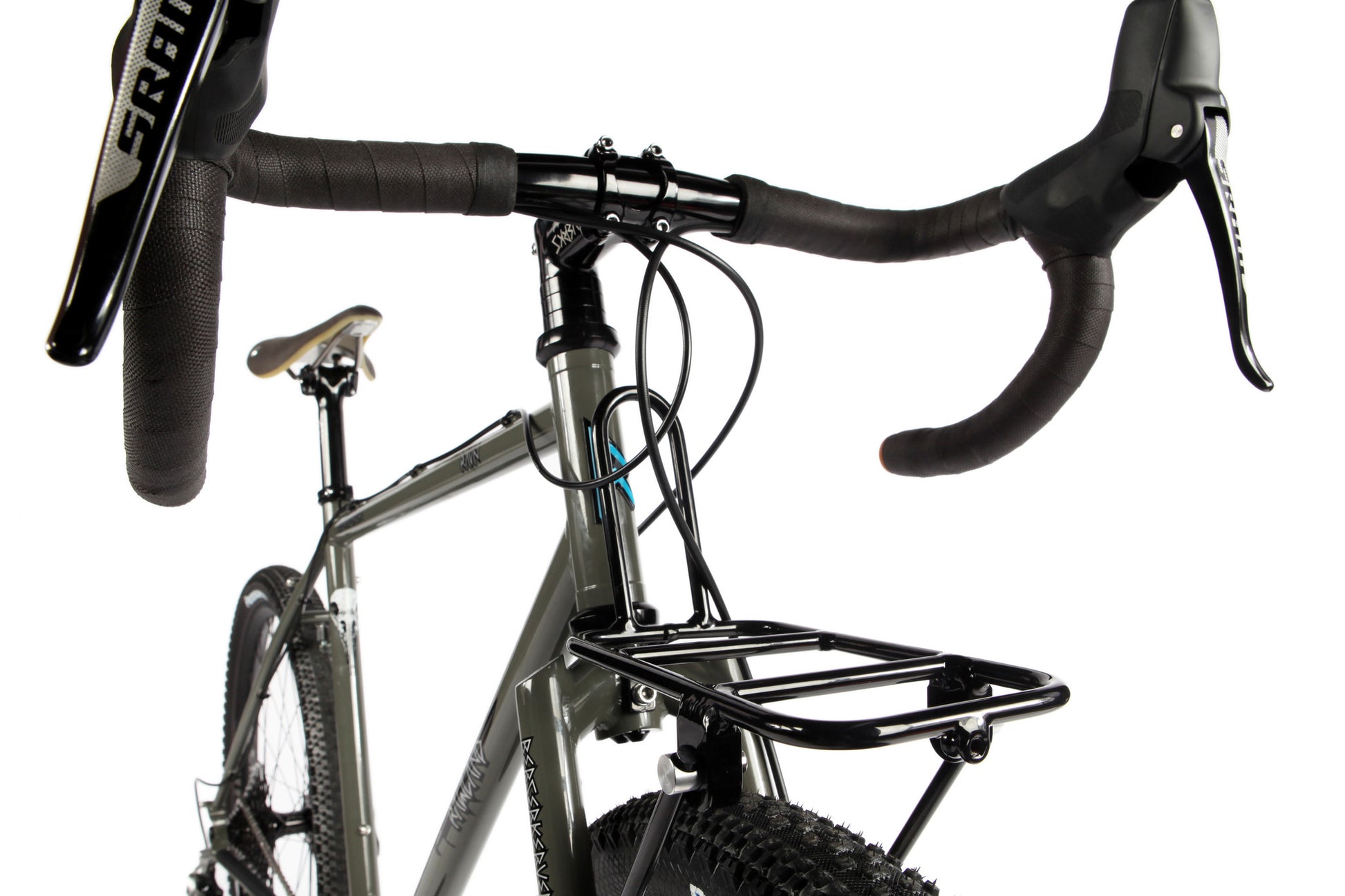

      • Rando and low-rider rack bosses
      • No toe overlap with fender and 20mm gap

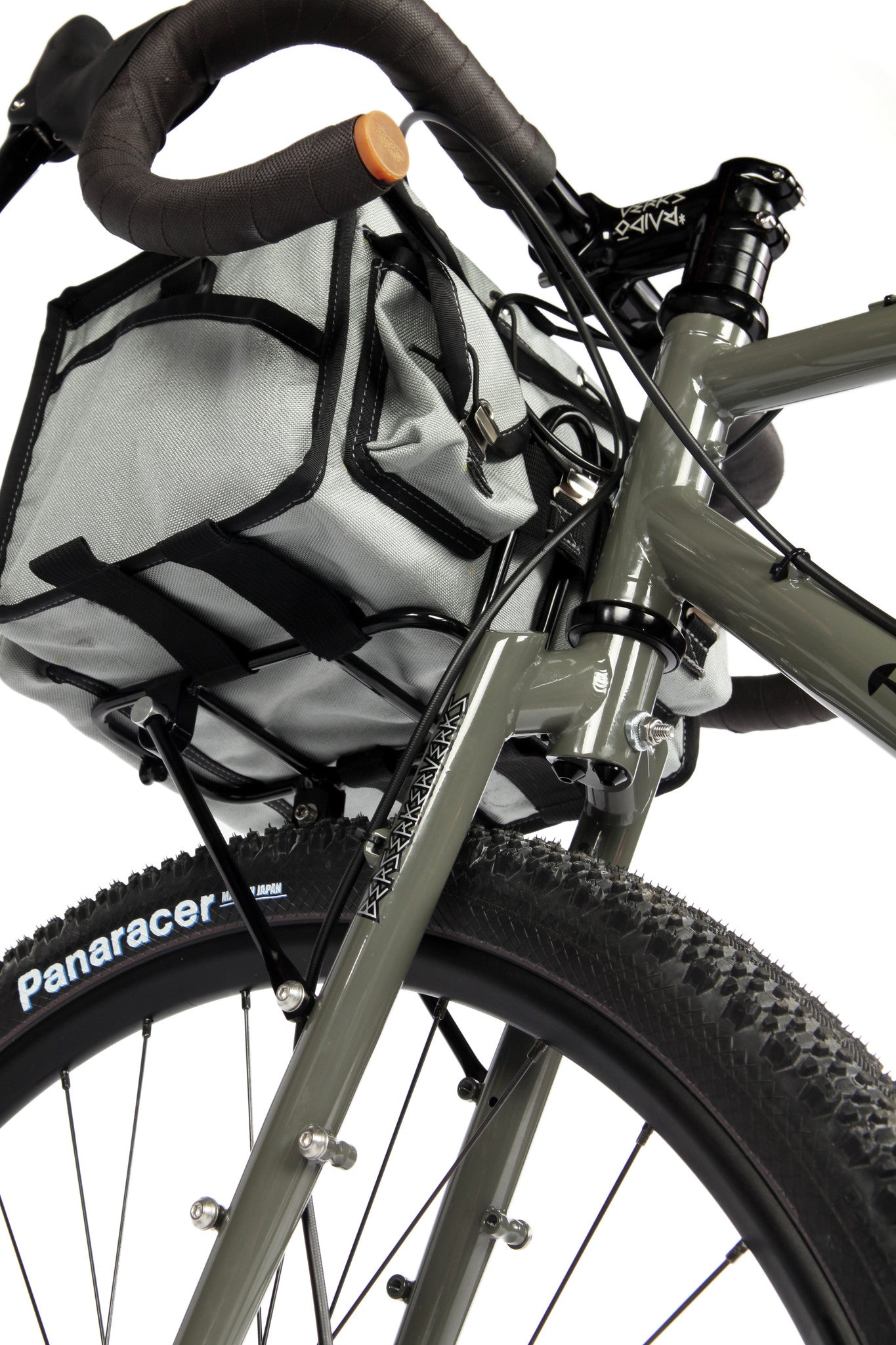

      • Hourglass low-rider bosses

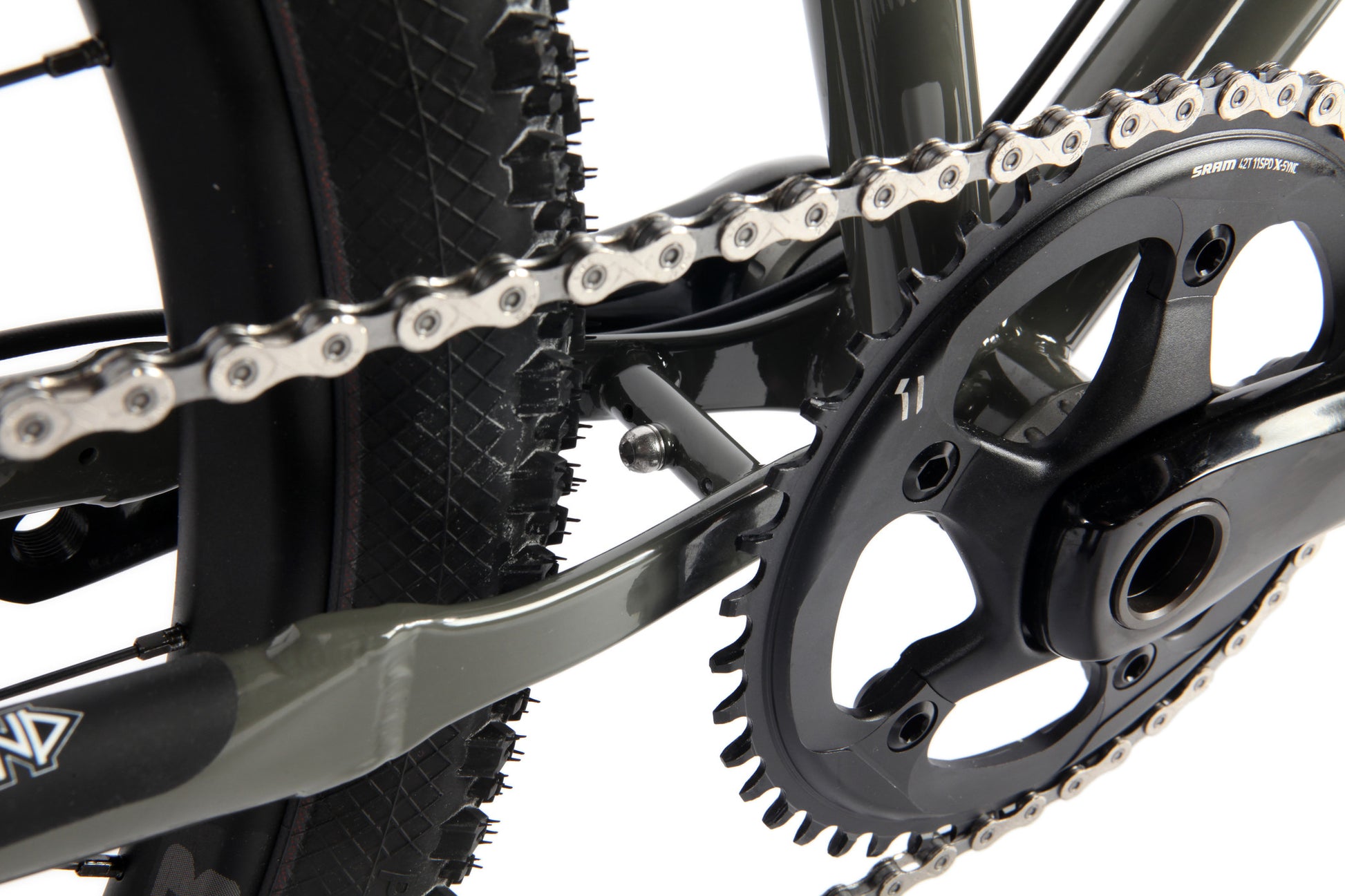

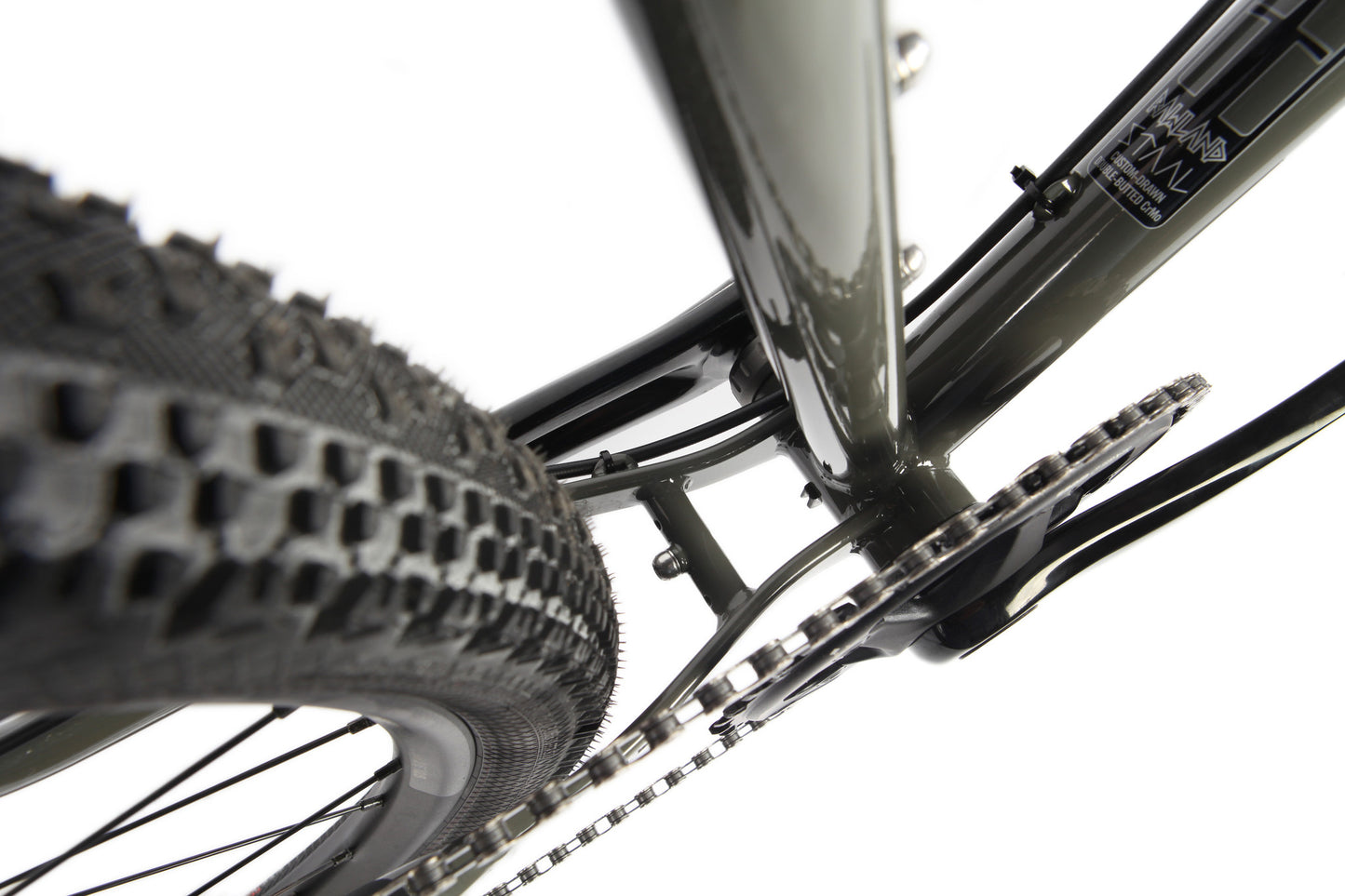

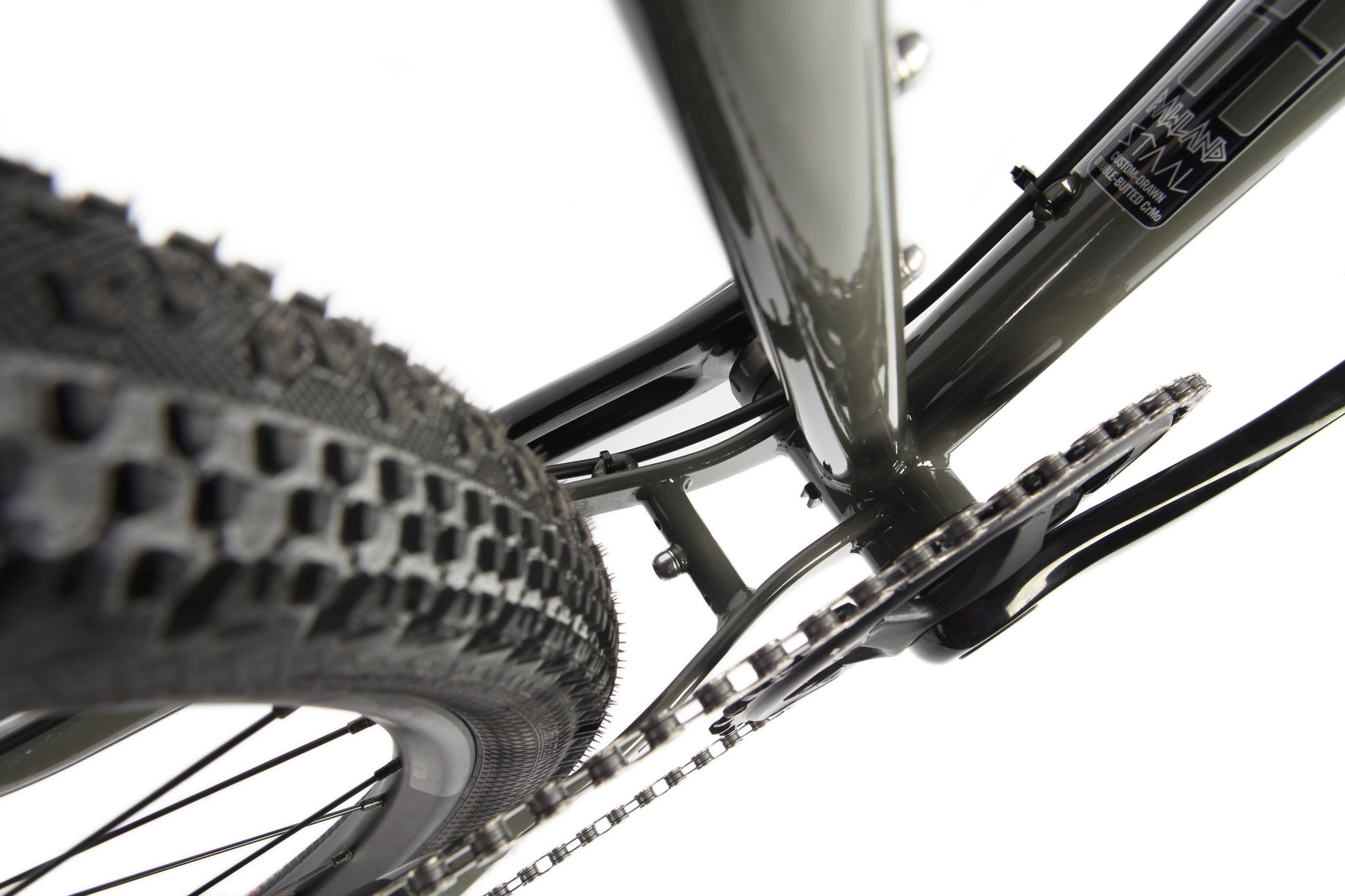

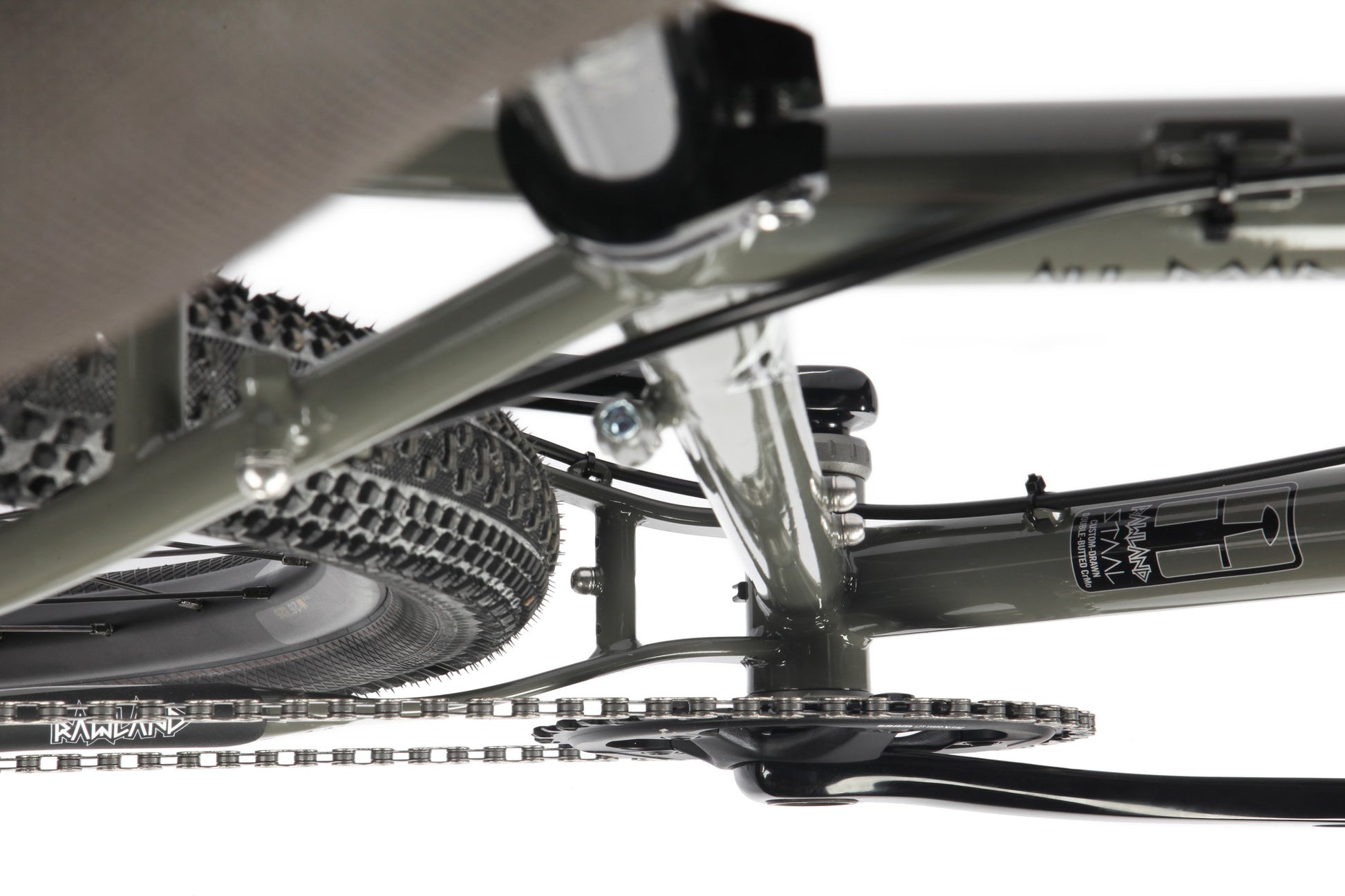

    • Rawland chainstay yoke for increased clearance and durability
    • 12x142mm thru-axle disc (180mm brake rotor only)
    • 44mm chainline
    • 68mm English-thread bottom bracket

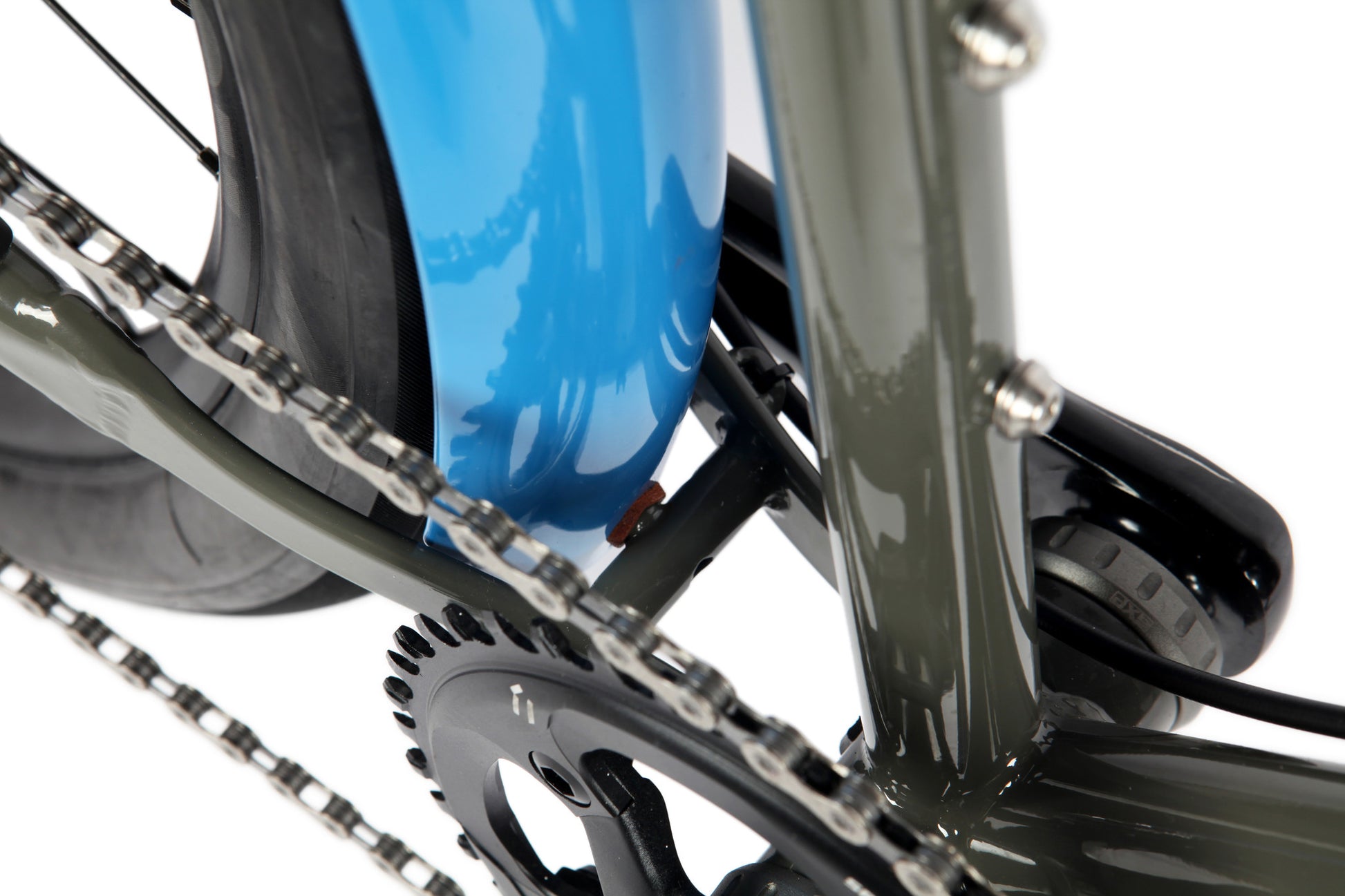

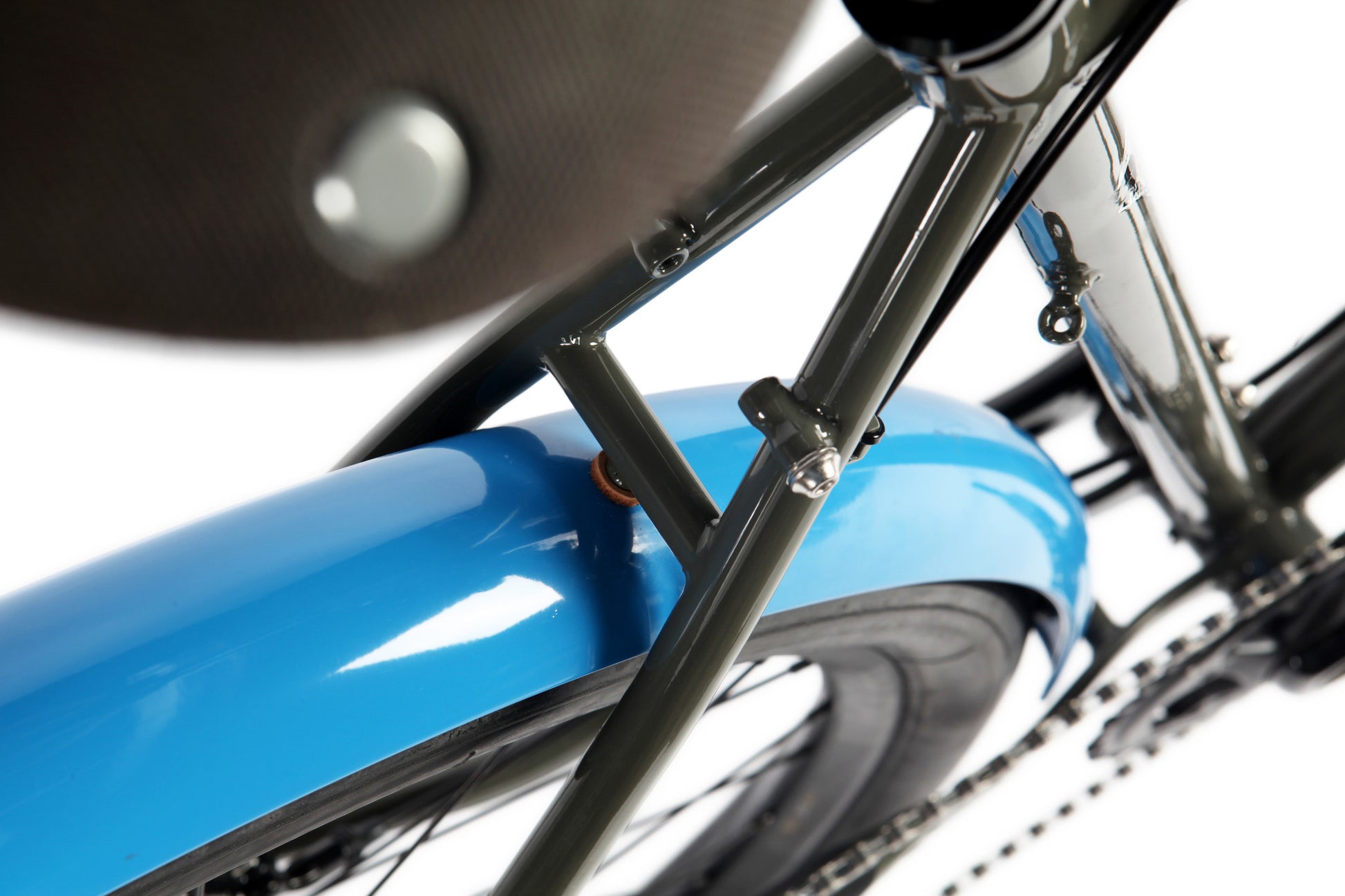

    • Full equidistant fender mounts for perfect fender lines
    • Midfork rando and low-rider mounts, seatstay rack mounts

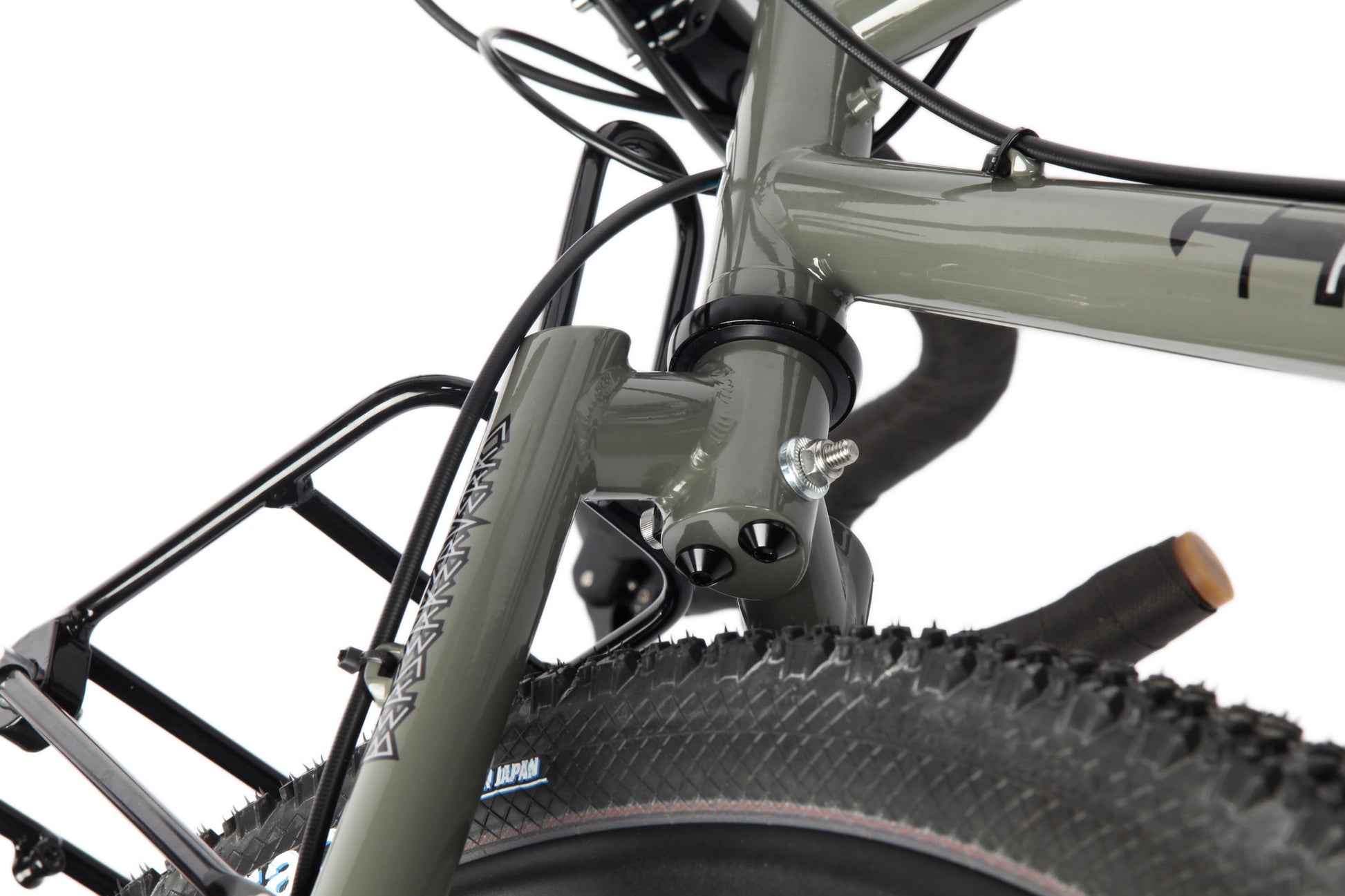

    • Internal-wiring ports on drive-side fork blade for dynamo hub
    • Replaceable rear dropouts
    • Chain hanger on seatstay
    • Pump peg on head tube
    • Ultra-protective ED coating throughout, wet paint, clear coat
    • Color: Pale Blue Gray
    • Seatpost size: 27.2mm
    • 3 bottle-cage mounts
    • Rawland rubber slapguard
    • Certified to exceed the stringent ISO 4210 international safety standard

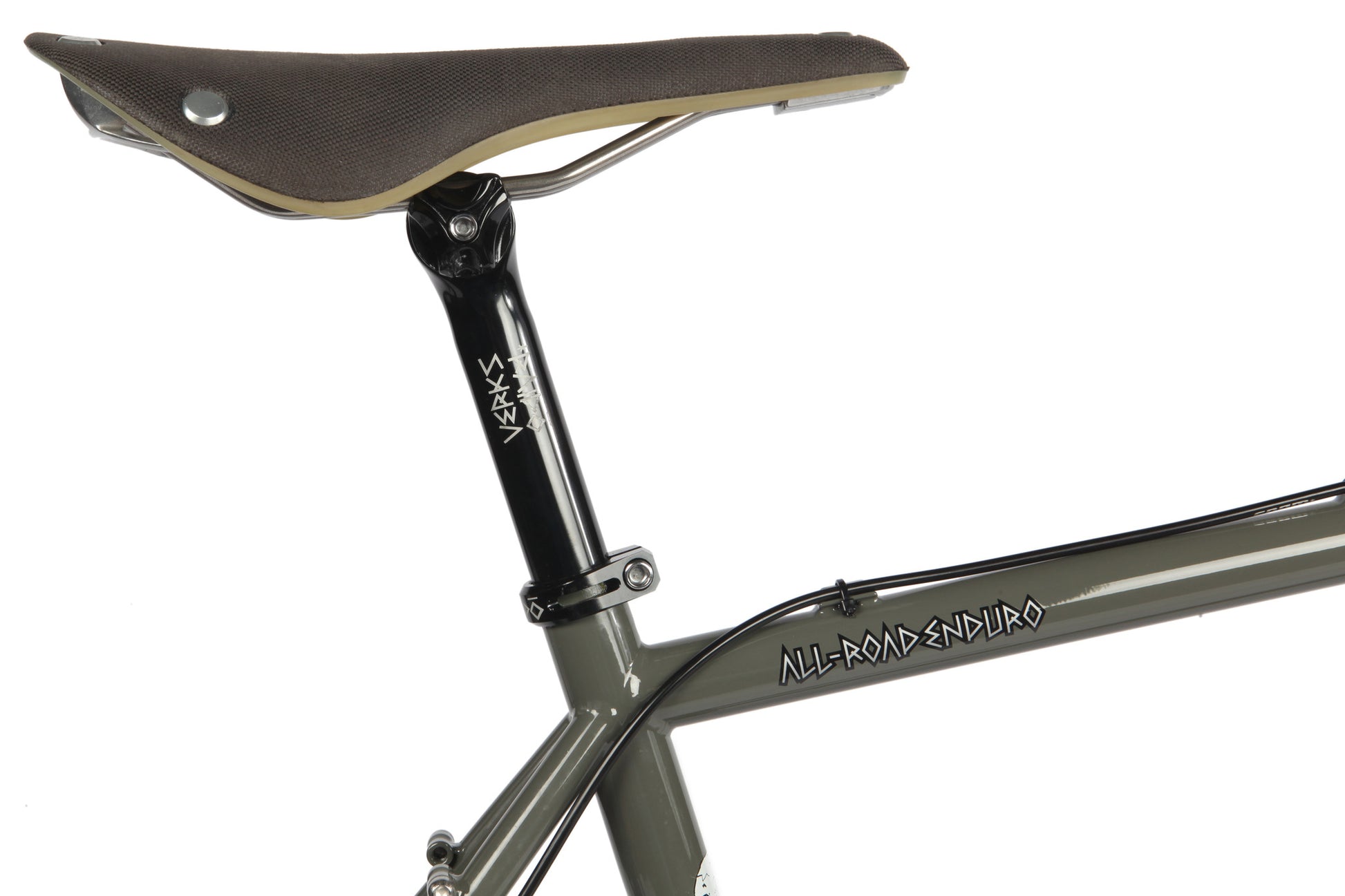

    • Seatpost clamp: Raidoverks 29.8mm (included)

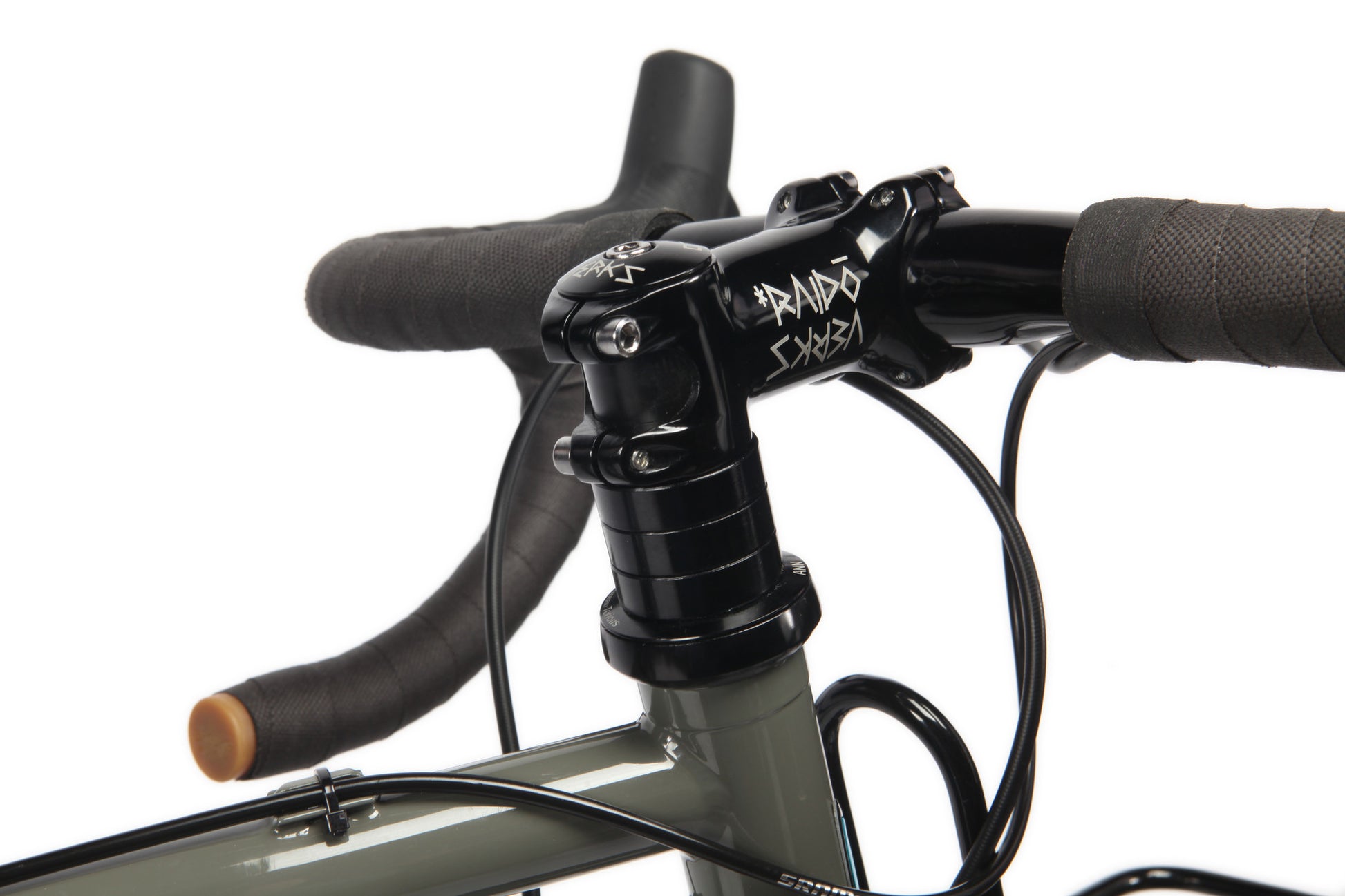

    • Headset: Tange Seiki Japan, needle-bearing (included)
    • Skewers: Raidoverks Through-Axle (included)
    • FedEx shipping extra
  • Frame size SM MD LG XL
    Effective top tube length 54cm 56cm 58cm 60cm
    Standover height 760 790 820 850
    Seat tube length, center to top 475 518 562 606
    Head tube length 129 150 171 192
    Head tube angle 73.0 73.0 73.0 73.0
    Seat tube angle 73.5 73.0 72.5 72.0
    Top tube slope angle 13.5 10.6 7.9 5.4
    Rake 69 69 69 69
    Trail 30 30 30 30
    Setback 158 169 181 192
    Reach 374 383 391 399
    Stack 560 580 600 620
    Bottom bracket height 272 272 272 272
    Bottom bracket drop 61 61 61 61
    Chainstay length 430 430 430 430
    Wheelbase 1024 1039 1054 1068
